Restructered text syntax example¶

Please have alook at the rwa code to see how these examples are implemented.

See reStructuredText Primer

Figure¶

I usually put figure as png into an img folder within my docs folder.

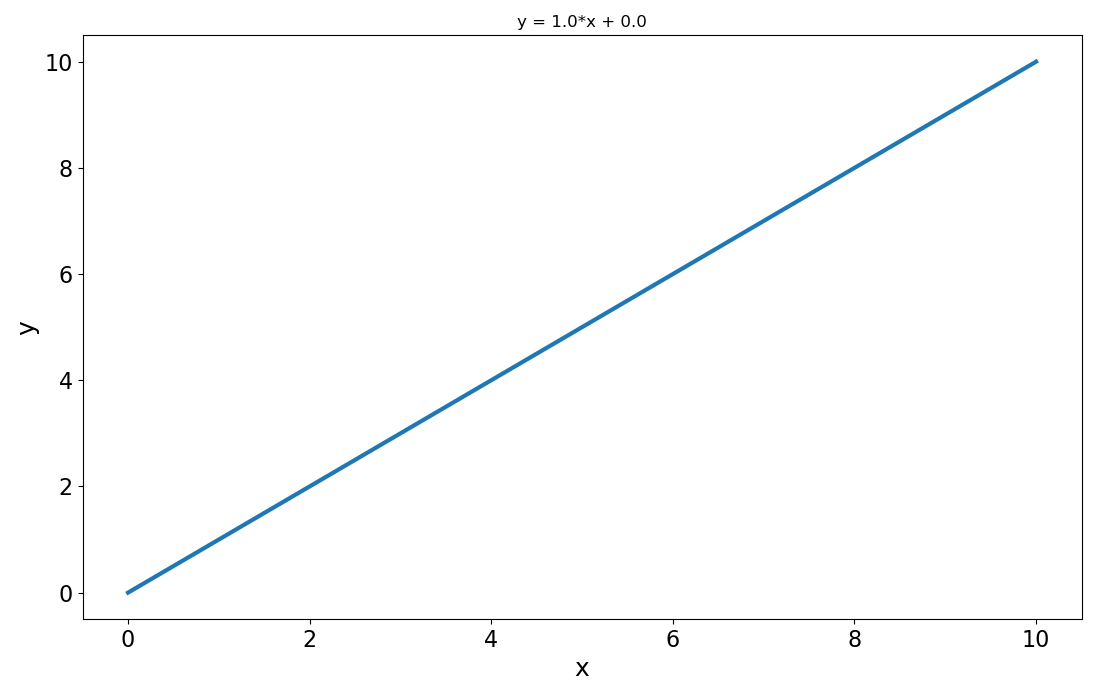

Figure Caption

Table¶

One way of making a table (csv table). There are others…

Example table¶

xmin xmax xsteps

state

battery 0 3 4

heat-storage 0 5 2

Math¶

..note: Make sure you added sphinx.ext.mathjax extension to your conf.py. See Extension .

Math support in sphinx

In line math code \(S^\text{M}\) example

Or like this:

\[nn = [R\; S^\text{1}\; S^\text{2}\; ...\; S^\text{M}]\]

Hyperlinks¶

This is how you link to a website

If you have created a reference before a section headr, figure, table, etc., you can link to it. This works acroos all files in your docs folder.

This is how you create the reference (for a section here)

.. _my-reference-label:

Section to cross-reference
--------------------------

This is how you link to it

:ref:`my-reference-label`

This is how you change the link title:

:ref:`Link title <my-reference-label>`

Link to the figure in this chapter: Figure Caption

Link to the first section header in the index.rst file (we defined index as reference): Documetation with sphinx and readthedocs

Same link but we change the title to display here: New Name

Code¶

Python¶

python code like this:

print('Hello World')

or this:

print('Hello World')

Restructured text¶

Example section
----------------

Java¶

public class HelloWorld
{

           public static void main (String[] args)
           {
                         // Ausgabe Hello World!
                         System.out.println("Hello World!");
           }
}

R¶

myString <- "Hello, World!"
print ( myString)
